Precision Vacuum Casting Services
Premium polyurethane casting solutions for low-volume production and functional prototypes. Profit Machining replicates fine master-model details with production-grade plastics and elastomers under zero-void environments.
Profit Machining delivers high-precision vacuum casting services for low-volume production and functional prototyping. Utilizing advanced negative-pressure casting chambers and premium polyurethane resins, we replicate fine master-model details with production-grade accuracy, zero micro-voids, and exceptional surface finish.
Quick Facts
| Engineering Metric | Specification Standard |
|---|---|
| Achievable Tolerance | ±0.01 mm (0.0004 inches) |
| Material Catalog | 30+ Certified Metals & Plastics |
| Minimum Order Quantity (MOQ) | 1 Piece (Prototyping Approved) |
| Standard Lead Time | 3 - 15 Business Days |
| Quality Control Standard | 100% In-Process & Final Inspection |
| Production Scaling Capacity | Prototype to Mass Production Runs |
What Is Vacuum Casting?

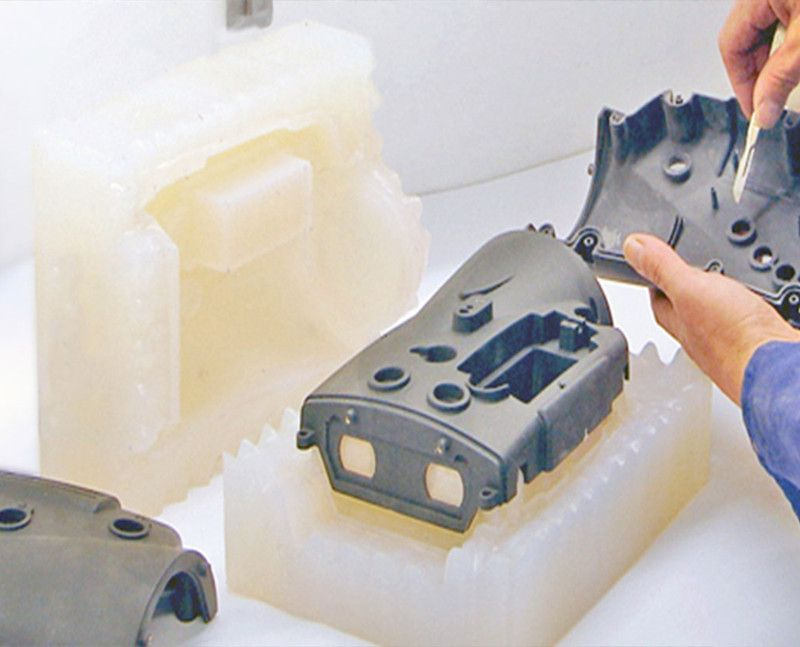

Vacuum casting is a precision polyurethane replication process that bridges the gap between rapid prototyping and industrial injection molding. A master model is created via CNC machining or SLA 3D printing, then suspended in a mold box and embedded in liquid silicone to form a flexible negative mold under vacuum. Polyurethane resin is then poured into the cavity under complete negative pressure, eliminating micro-voids and replicating every surface detail of the original master with production-grade accuracy.
Machining Capabilities
Master Model Fabrication
Ultra-precision CNC or SLA master models with geometric calibration for shrinkage compensation.

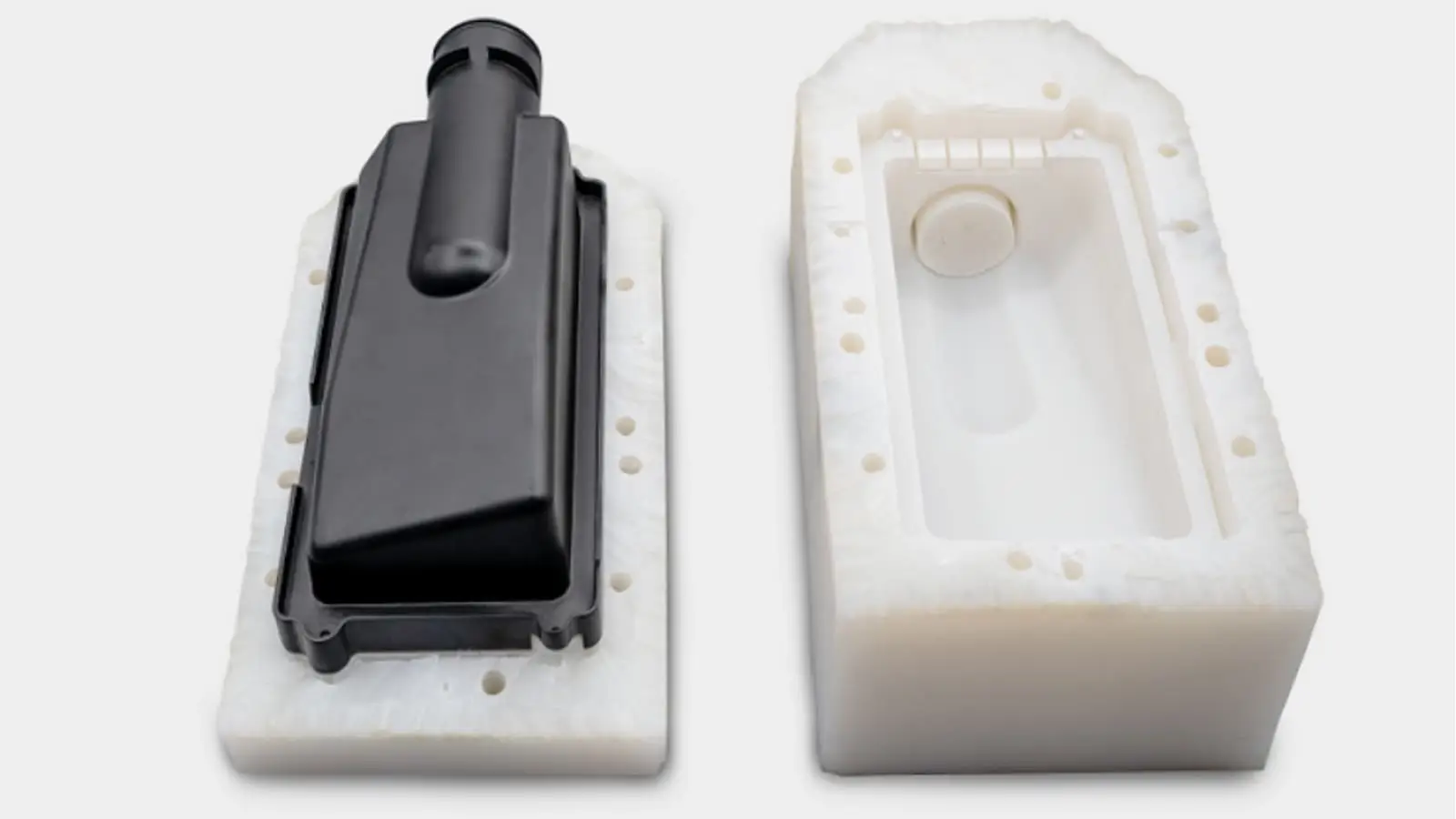

Silicone Mold Construction
Premium silicone tooling with automated vacuum degassing for 20-25 high-fidelity shots.
Vacuum Polyurethane Casting
Negative-pressure casting chambers eliminating micro-voids and ensuring structural density.
Multi-Material Overmolding
Seamless overmolding of rigid and elastomeric materials with embedded metal inserts.
Post-Curing & Surface Prep

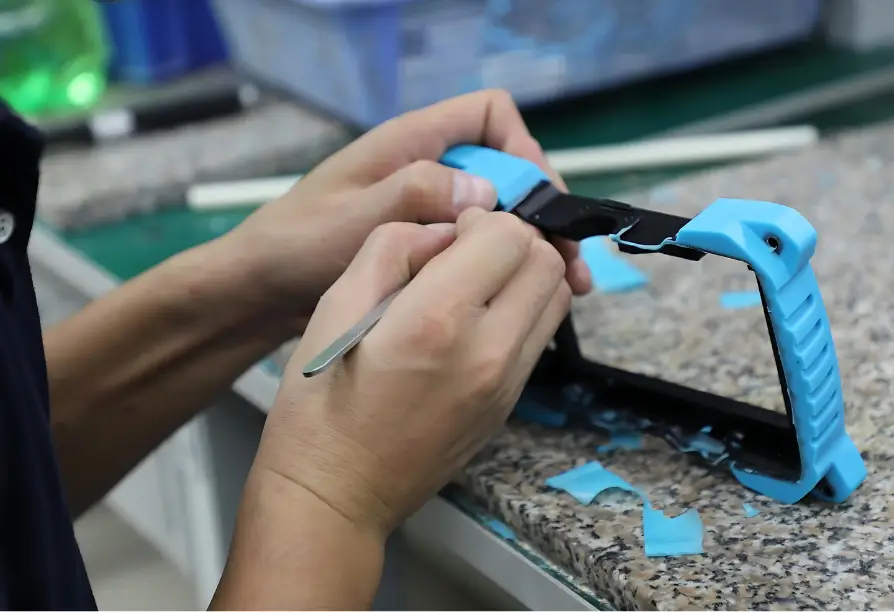

Programmable convection oven curing, de-gating, and surface preparation for finishing.
Custom Color Matching
Precise pigmentation aligned with Pantone, RAL, or Federal Standard color matrices.
Materials We Machine

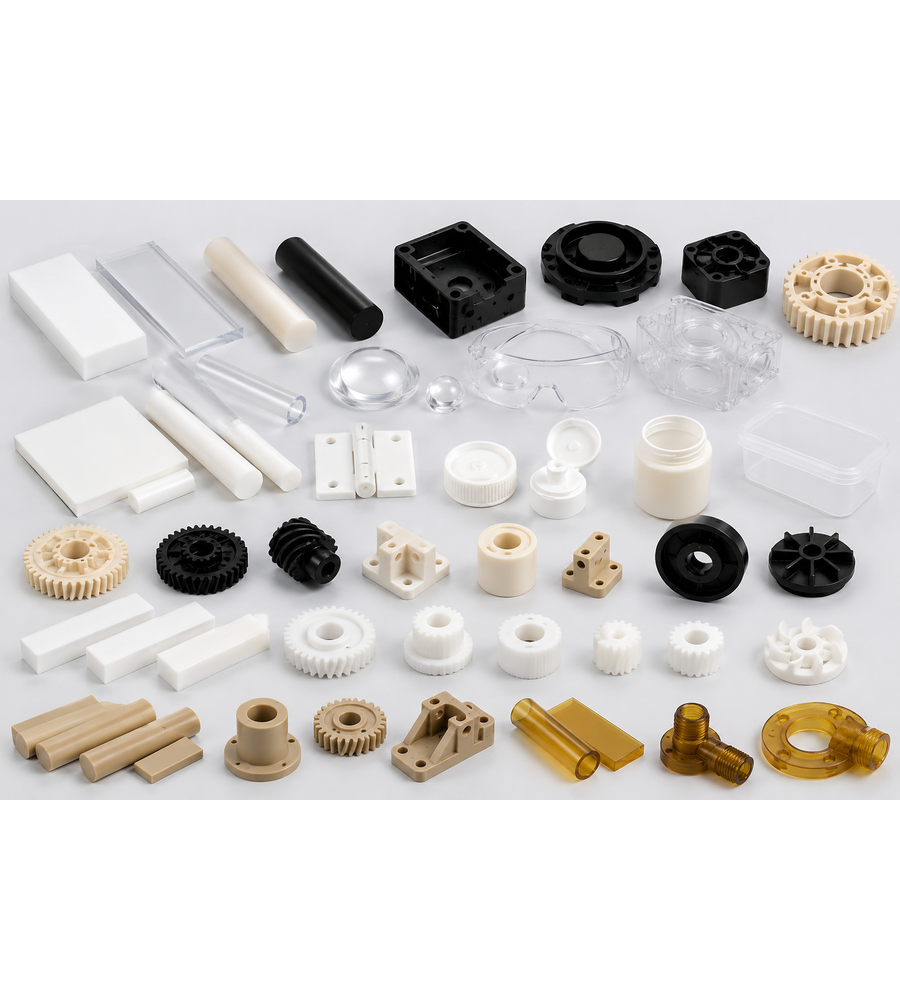

Polyurethane Resin Types
Excellent impact strength for enclosures, automotive interiors, and consumer goods testing.
Optically transparent with high light transmission for lenses and light pipes.
High elongation with snap-fit living hinge performance for clips and lids.
Shore 30A to 90A for gaskets, seals, grips, and damping overmolds.
UL-rated polyurethanes for electrical enclosures and aerospace applications.
Inconel 718, Hastelloy, Monel
Surface Finishing Options
As Cast / Matte Finish
Clean, non-reflective matte or satin surface replicating the exact texture of the master model.
High-Gloss Polishing
Hand-polished to achieve an optical, mirror-like high gloss cosmetic finish.
Custom Color Matching
Precise pigmentation aligned with Pantone, RAL, or Federal Standard color matrices.
Functional Coatings
EMI/RFI shielding paint, UV-stabilized clear coats, and soft-touch textured finishes.
Laser Engraving
High-definition marking for logos, part numbers, UI graphics, and functional labels.
Rubber Painting
Flexible paint systems for elastomeric parts requiring uniform color and surface protection.
Texture Spray
Application of fine or coarse textured coatings for grip enhancement and aesthetic appeal.
Vapor Polishing
Chemical vapor treatment for PC/PMMA parts to achieve optical clarity and gloss uniformity.
High-Precision CNC Tolerances & Verification Metrics
| Inspection Parameters | Achievable Production Capacity | Verified Measurement Methods |
|---|---|---|
| General Linear Tolerance | ISO 2768-m (Standard) | Digital Calipers & Micrometers |
| Precision Tolerances | Down to ±0.01 mm (±0.0004 in) | Coordinate Measuring Machine (CMM) |
| Surface Roughness (Ra) | Minimum Ra 0.8 μm (As Machined) | Contact Profile Surface Roughness Tester |
| Positional Repeatability | ±0.005 mm (High Precision Class) | Laser Interferometer Verification |
| CMM Dimensional Accuracy | ISO 10360-2 Certified Machine Accuracy | Hexagon Automated CMM |
| Thread & Gear Inspection | GO/NO-GO Gauge Validation | Optical Comparator & Gear Analyzer |
Industries We Serve
Medical Device Design
Complex diagnostic enclosures, biocompatible structural prototyping, and fluidics manifolds.
Automotive Engineering
High-fidelity dashboard panels, custom lighting enclosures, HVAC duct mockups, and bumper trims.
Consumer Hardware & IoT
Form-fitting smart home casings, interlocking clip assemblies, and rubber-like shock absorbing seals.
Industrial Robotics
Low-volume gripper housings, protective dust covers, cable management, and control panel components.
Advanced Machine Fleet & Production Capacity
| Equipment Classification | Machine Model / Axis Type | Capacity / Workspace | Quantity |
|---|---|---|---|
| 5-Axis CNC Machining Centers | DMG MORI Simultaneous 5-Axis | Up to 650 x 650 x 500 mm | 8 Units |
| 4-Axis CNC Milling Machines | Fanuc Controlled 4-Axis Vertical | Up to 1020 x 610 x 610 mm | 15 Units |
| 3-Axis CNC Production Mills | High-Velocity Vertical Machining Centers | Up to 1200 x 700 x 600 mm | 25 Units |
| High-Precision CNC Turning Centers | Live Tooling Lathes with Y-Axis | Max Swing: 420mm / Length: 600mm | 12 Units |
| Metrology Verification Station | Hexagon Automatic CMM | 800 x 1000 x 600 mm | 2 Stations |
| Secondary Processing Fleet | Surface Grinders & Micro-Drills | Specialized Finishing | 6 Units |
Portfolio Gallery of Machined Geometries
Medical Diagnostic Housings
Complex enclosures for medical field evaluation units and clinical testing.

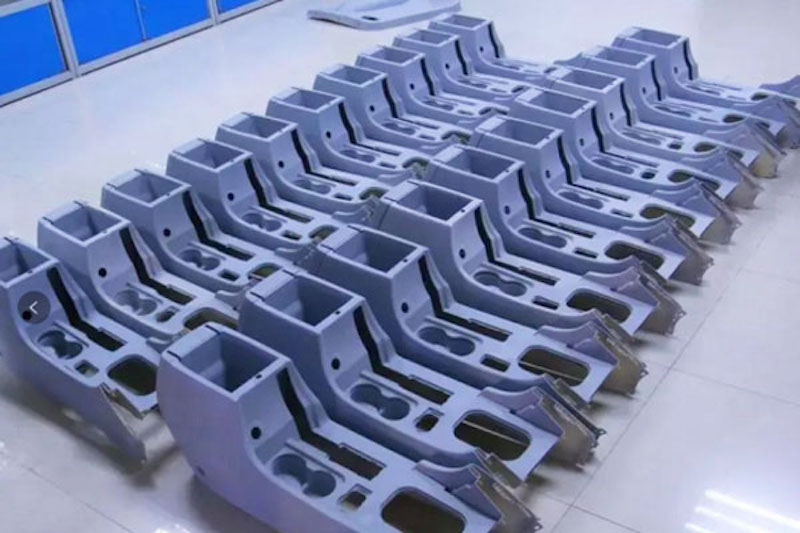

Automotive Interior Parts
High-fidelity dashboard panels, lighting housings, and trim components.
Consumer Electronics Casings
Form-fitting smart home and IoT device enclosures with textured finishes.
Industrial Grippers & Tooling
Low-volume robotic gripper housings and protective covers.
Fluidics & Manifold Systems
Clear resin flow visualization models and manifold prototypes.
Overmolded Assemblies
Multi-material parts with embedded metal inserts and elastomeric grips.
Our Streamlined 6-Step Process
01 Upload CAD Files
Submit your 3D models (STEP, IGES) securely through our encrypted interface.
02 DFM Analysis & Quote
Our engineers review drafts, shrinkage factors, and issue a firm quote within 24 hours.
03 Master Model Generation
Ultra-precision master model via high-accuracy CNC milling or SLA printing.
04 Silicone Tool Construction
Master embedded in liquid silicone and cured under vacuum to form the negative mold.
05 Vacuum Polyurethane Casting
Resin mixed and poured under complete negative pressure to eliminate voids.
06 Post-Curing & Surface Prep
Components oven-cured, de-gated, and surface prepared for finishing.
Turnaround Commitments & Scalable Fleet Capacity
| Project Phase | Order Volume | Promised Lead Time |
|---|---|---|
| Rapid Prototyping | 1 - 5 Pieces | 3 - 5 Calendar Days |
| Small Batch | 10 - 100 Pieces | 7 - 10 Calendar Days |
| Mass Production | 500 - 5,000+ Pieces | 15 - 25 Calendar Days |
| Urgent Expedited | Custom | Available upon Request |
Certified Manufacturing Standards & Global Trade Compliance
ISO 9001:2015
Certified Quality Management System covering all vacuum casting and inspection operations.
RoHS Compliant
Zero hazardous substances across all polyurethane resin material streams.
REACH SVHC Certified
Full compliance with EU chemical safety regulations for frictionless global trade.
NDA Protection
Corporate-level Non-Disclosure Agreements for complete IP security.
Engineered Value & Manufacturing Performance in Numbers
Years Experience
15+ Years of precision vacuum casting and polyurethane replication engineering.
Active Clients
300+ global clients served across medical, automotive, and industrial sectors.
Systems Installed
20+ vacuum casting chambers operating in a temperature-controlled facility.
Parts Delivered
100,000+ precision cast components with zero structural rejection rate.
Pass Rate
99.8% Quality Pass Rate verified by independent inspection audits.
Frequently Asked Questions
Q1: Can we sign a legally binding corporate NDA before uploading proprietary CAD files?
A1: Absolutely. Information protection is our highest priority. We routinely review and sign Non-Disclosure Agreements (NDAs) to legally seal your files before any transmission occurs.
Q2: What is your strict Minimum Order Quantity (MOQ) for a casting run?
A2: Profit Machining scales dynamically with your development needs. We enforce no minimum batch thresholds; we happily accept 1-piece master verification mockups up to mid-volume production runs.
Q3: How many casting shots can you yield from a single silicone tool cavity?
A3: Depending on part geometry and resin aggressiveness, our industrial-grade silicone yields 20 to 25 high-fidelity parts before tool deterioration begins. We build duplicate molds if your order volume exceeds this threshold.
Q4: How do you compensate for polymer volumetric shrinkage during curing?
A4: Our specialized CAM software calculates the volumetric contraction coefficient of the specific polyurethane resin beforehand, up-scaling the master model coordinates to offset shrinkage exactly.
Q5: Can vacuum cast parts replicate fine surface textures like knurling or micro-grooves?
A5: Yes. Our silicone molds replicate micro-textures, knurling patterns, and sharp internal radii down to 0.05mm resolution with exceptional fidelity.
Q6: What is your typical lead time for a production-ready vacuum cast part?
A6: Master verification can be completed within 3-5 business days. Low-volume production runs of 20-100 units are typically delivered within 7-14 working days from drawing clearance.
Explore Our Complementary Precision Manufacturing Capabilities
4-Axis CNC Machining
Rotary indexing for efficient multi-side machining and complex component production with fewer setups.
5-Axis CNC Machining
Advanced simultaneous milling for complex geometries, precision surfaces and tight-tolerance components.
CNC Turning
High-precision lathe machining for shafts, pins, sleeves and other cylindrical components.
Die Casting
High-volume aluminum and zinc alloy casting solutions for consistent production-ready metal components.
Injection Molding
Custom plastic injection molding for prototypes and production-grade plastic components.
All CNC Services
Click to explore our complete range of CNC machining, turning and custom manufacturing services.
Ready to Start Your Next Precision Project?
Upload Your CAD Drawings and Receive an Engineering Review & Commercial Quote Within 12 Hours.
