Precision Swiss CNC Machining
High-Accuracy Sliding Headstock Machining for Micro-Components & Complex Small Parts
Profit Machining delivers high-precision Swiss CNC machining solutions for small-diameter, complex components requiring extreme accuracy. Utilizing advanced sliding headstock lathes with live tooling and multi-axis capability, we produce micro-precision parts with exceptional surface finish, tight concentricity, and zero defect rates from prototyping through high-volume production.
Quick Facts
| Engineering Metric | Specification Standard |
|---|---|
| Achievable Tolerance | ±0.01 mm (0.0004 inches) |
| Material Catalog | 30+ Certified Metals & Plastics |
| Minimum Order Quantity (MOQ) | 1 Piece (Prototyping Approved) |
| Standard Lead Time | 3 - 15 Business Days |
| Quality Control Standard | 100% In-Process & Final Inspection |
| Production Scaling Capacity | Prototype to Mass Production Runs |

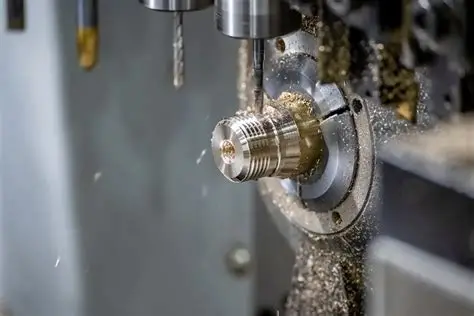

What Is Swiss CNC Machining?
Swiss CNC machining, also known as Swiss-type turning or sliding headstock machining, is a specialized precision manufacturing process where the bar stock rotates and slides axially through a guide bushing while stationary cutting tools shape the part. Unlike conventional CNC lathes, the guide bushing supports the material immediately adjacent to the cutting point, eliminating deflection and enabling extreme precision on long, slender components. Swiss machines are equipped with multiple live tooling stations and counter-spindles, allowing complete machining of complex parts including milling, cross-drilling, threading, and slotting in a single setup.
Machining Capabilities
Swiss Turning
Sliding headstock precision turning for long, slender components with exceptional straightness.
Live Tool Milling
C-axis and Y-axis milling for flats, hexes, slots, and complex geometric profiles.
Cross-Drilling & Tapping
Angled and radial hole drilling with synchronous tapping for threaded features.
Thread Whirling
High-speed thread whirling for bone screws, threaded implants, and precision lead screws.
Slotting & Grooving
Internal and external grooving with micro-tooling for tight tolerance features.
Polygon Turning
Non-round profile generation for custom drive features and specialized connector geometries.

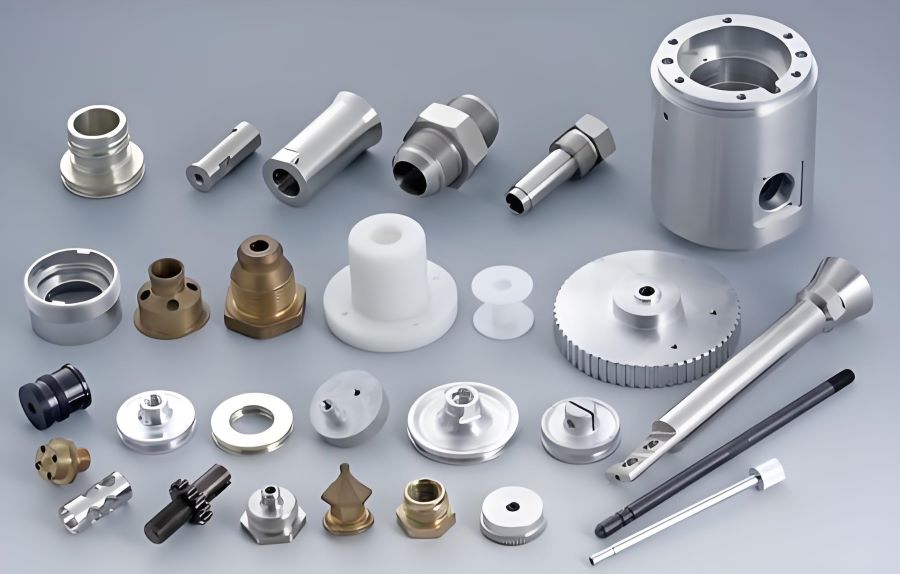

Materials We Machine
Surface Finishing Options
As-Machined
Precision surface finish suitable for medical implants and functional components.
Electropolishing
Electrochemical removal of micro-burrs for bright, smooth, contaminant-free surfaces.
Passivation
Citric or nitric acid passivation for stainless steel corrosion resistance (ASTM A967).

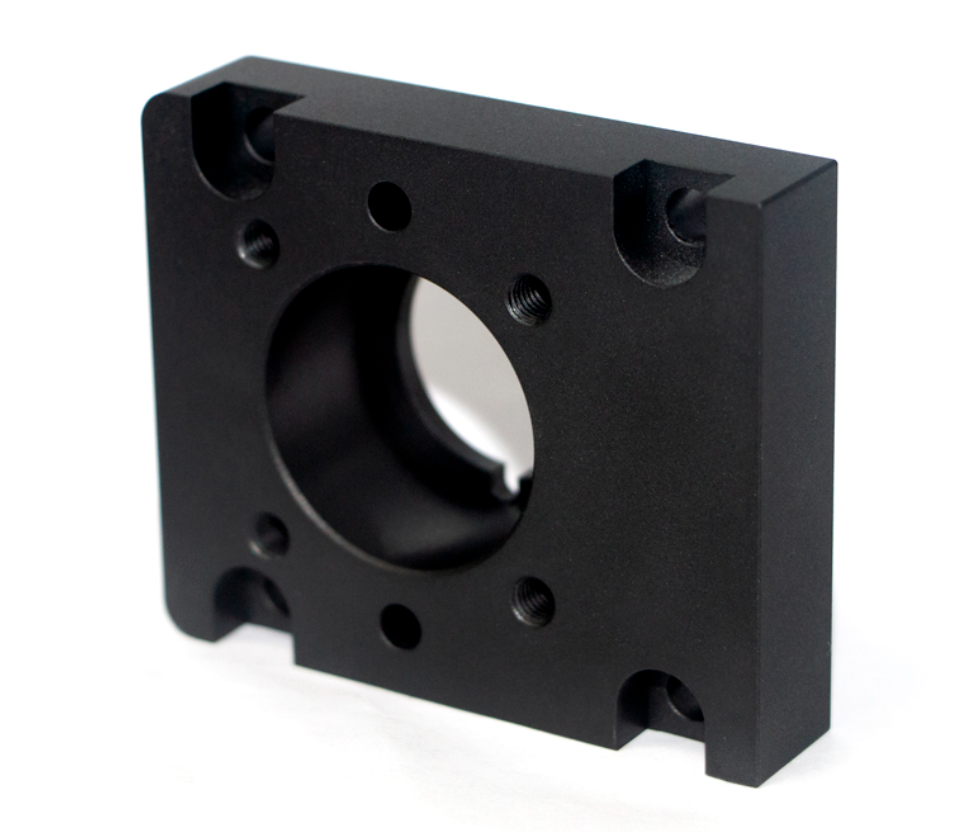

Black Oxide
Anti-corrosive black conversion coating for ferrous materials without dimensional change.
Anodizing
Type II & Type III hardcoat anodizing for aluminum components requiring wear resistance.
Teflon/PTFE Coating
Non-stick, low-friction coating for medical devices and industrial tooling.

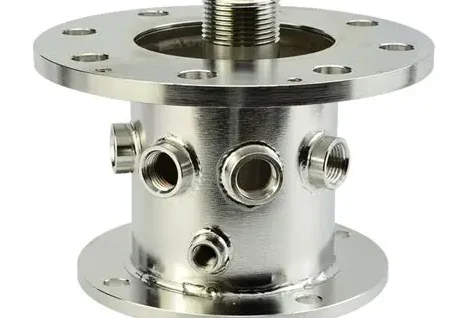

Zinc/Nickel Plating
Electroplated corrosion protection for carbon steel and alloy components.

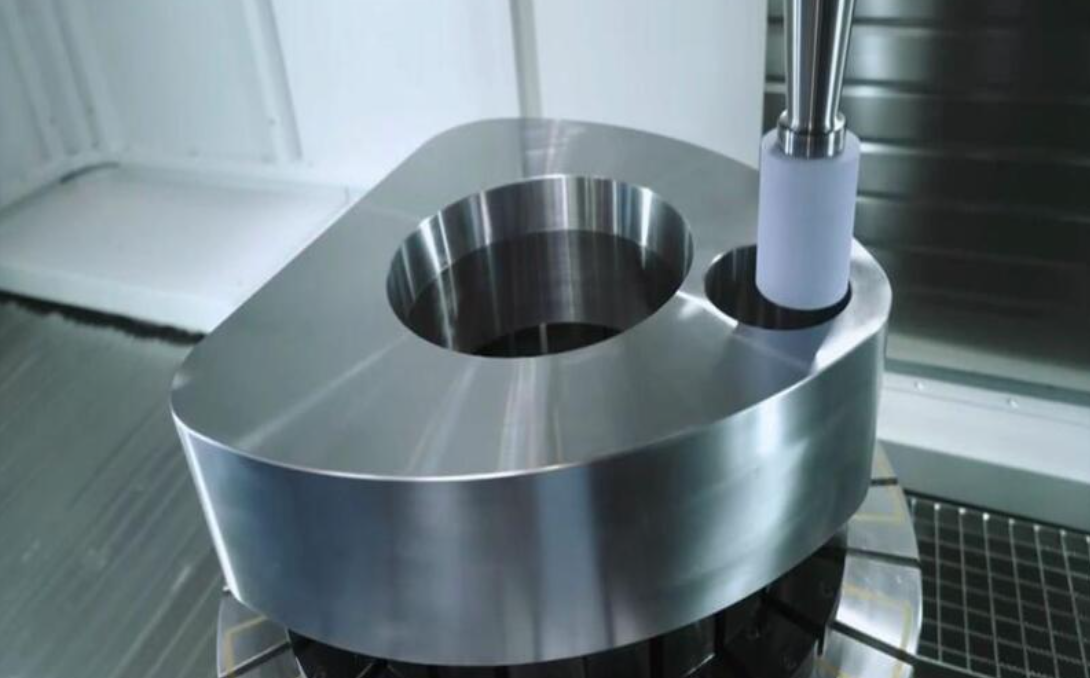

Micro-Bead Blasting
Uniform matte surface texture for cosmetic and light-diffusing requirements.
High-Precision CNC Tolerances & Verification Metrics
| Inspection Parameters | Achievable Production Capacity | Verified Measurement Methods |
|---|---|---|
| General Linear Tolerance | ISO 2768-m (Standard) | Digital Calipers & Micrometers |
| Precision Tolerances | Down to ±0.01 mm (±0.0004 in) | Coordinate Measuring Machine (CMM) |
| Surface Roughness (Ra) | Minimum Ra 0.8 μm (As Machined) | Contact Profile Surface Roughness Tester |
| Positional Repeatability | ±0.005 mm (High Precision Class) | Laser Interferometer Verification |
| CMM Dimensional Accuracy | ISO 10360-2 Certified Machine Accuracy | Hexagon Automated CMM |
| Thread & Gear Inspection | GO/NO-GO Gauge Validation | Optical Comparator & Gear Analyzer |
Industries We Serve
Medical & Orthopedic
Bone screws, spinal implants, dental components, and micro-surgical instruments.
Aerospace & Defense
Actuator pins, fuel system nozzles, sensor housings, and connector hardware.
Industrial Automation
Precision shafts, valve spools, pneumatic fittings, and encoder components.
Electronics & Telecom
Fiber optic connectors, RF adapter bodies, pin contacts, and switch hardware.

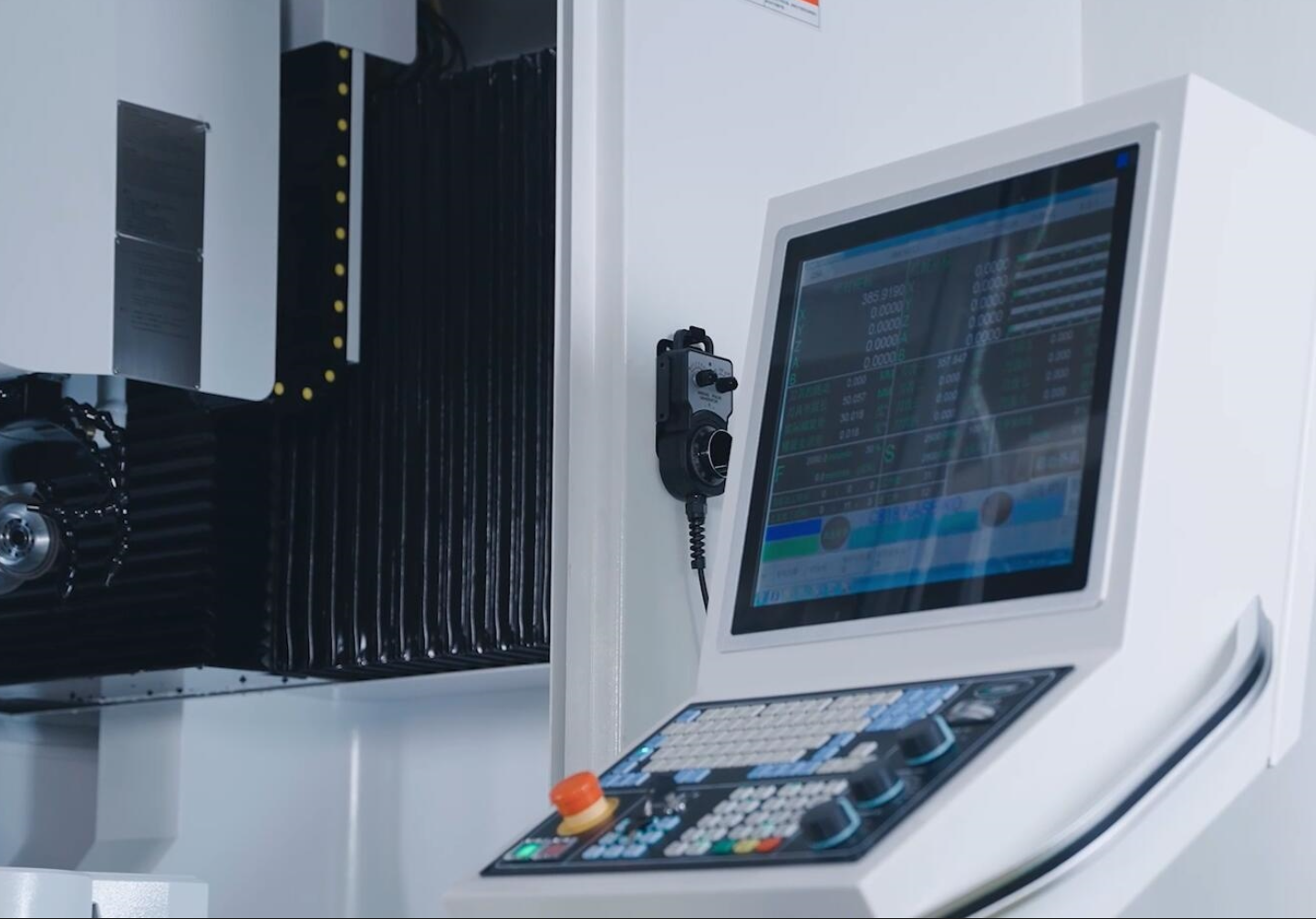

Advanced Machine Fleet & Production Capacity
| Equipment Classification | Machine Model / Axis Type | Capacity / Workspace | Quantity |
|---|---|---|---|
| 5-Axis CNC Machining Centers | DMG MORI Simultaneous 5-Axis | Up to 650 x 650 x 500 mm | 8 Units |
| 4-Axis CNC Milling Machines | Fanuc Controlled 4-Axis Vertical | Up to 1020 x 610 x 610 mm | 15 Units |
| 3-Axis CNC Production Mills | High-Velocity Vertical Machining Centers | Up to 1200 x 700 x 600 mm | 25 Units |
| High-Precision CNC Turning Centers | Live Tooling Lathes with Y-Axis | Max Swing: 420mm / Length: 600mm | 12 Units |
| Metrology Verification Station | Hexagon Automatic CMM | 800 x 1000 x 600 mm | 2 Stations |
| Secondary Processing Fleet | Surface Grinders & Micro-Drills | Specialized Finishing | 6 Units |

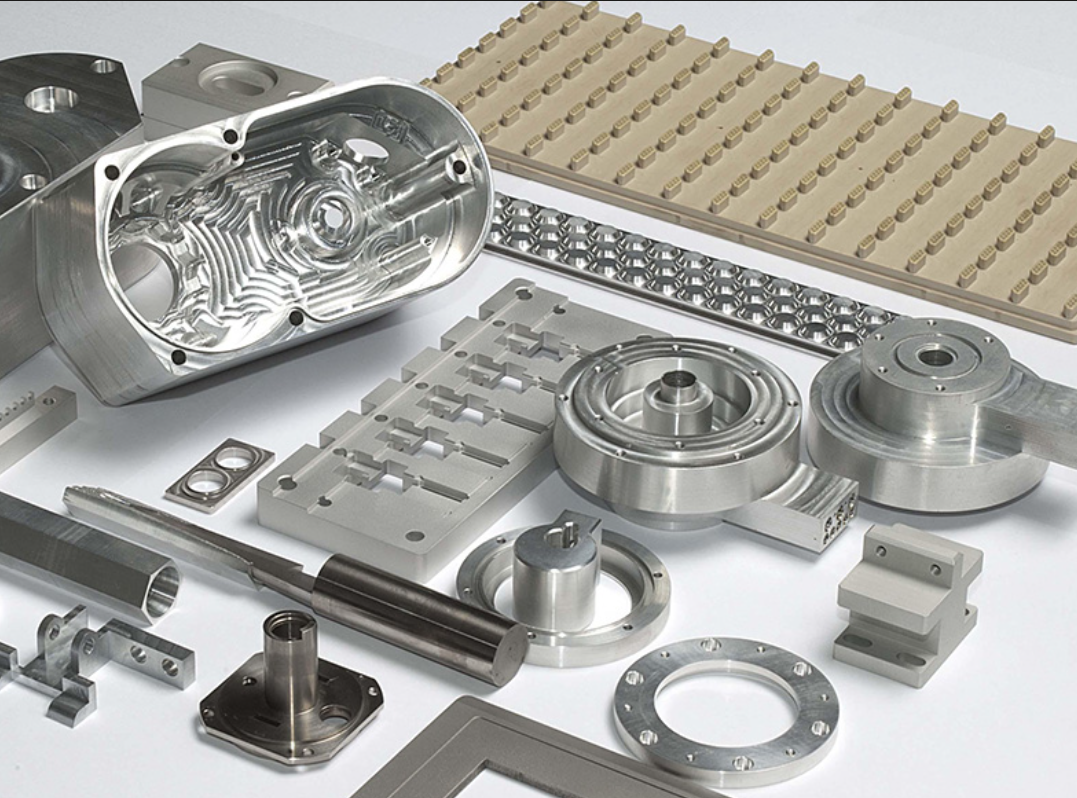

Portfolio Gallery of Machined Geometries
Medical Implants
Bone screws, spinal rods, dental implants, and surgical instrument handles.
Micro Components
Miniature pins, shafts, connectors, and precision bushings under 5 mm diameter.

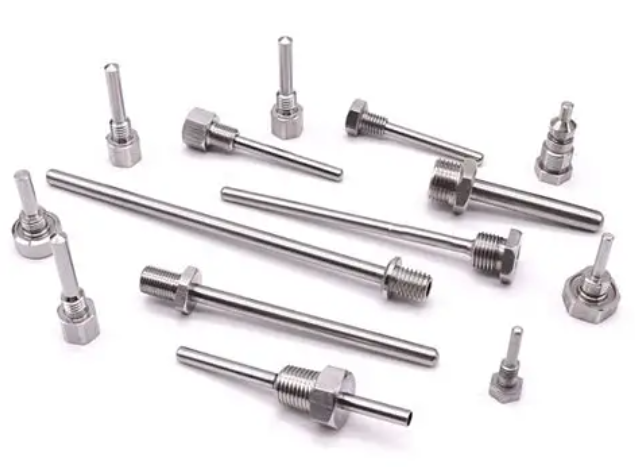

Threaded Fasteners
High-accuracy screws, threaded inserts, studs, and custom threaded components.
Aerospace Micro Parts
Fuel nozzles, actuator pins, valve components, and sensor housings.
Electronics Hardware
Fiber optic ferrules, connector shells, pin contacts, and RF adapter bodies.
Industrial Fittings
Hydraulic fittings, pneumatic connectors, valve stems, and precision adapters.
Our Streamlined 6-Step Process
01 Upload Engineering Drawings
Submit 3D models (STEP, IGES) and 2D PDF blueprints with tolerance callouts.
02 Technical Design Review
Swiss machining specialists analyze wall thickness, tool access, and material selection.
03 Instant Quotation
Receive a detailed, fixed-price quote with lead time commitment within 12 hours.
04 Prototype Sample Run
First-article sample machined and fully inspected via CMM for your approval.
05 Production Scheduling
ERP-integrated job order allocation with dedicated raw material sourcing.
06 Automated Swiss Machining
CNC Swiss lathes execute operations with live monitoring and real-time SPC data.
Turnaround Commitments & Scalable Fleet Capacity
| Project Phase | Order Volume | Promised Lead Time |
|---|---|---|
| Rapid Prototyping | 1 - 5 Pieces | 3 - 5 Calendar Days |
| Small Batch | 10 - 100 Pieces | 7 - 10 Calendar Days |
| Mass Production | 500 - 5,000+ Pieces | 15 - 25 Calendar Days |
| Urgent Expedited | Custom | Available upon Request |
Certified Manufacturing Standards & Global Trade Compliance
ISO 9001
2015: Certified Quality Management System covering all Swiss-type precision turning and secondary operations.
ISO 13485
2016: Medical Device Quality Management for implantable and surgical instrument manufacturing (as applicable).
SGS Supplier Audit
Independently verified production capacity, calibration records, and workforce qualifications.
RoHS & REACH Compliant
Full environmental compliance ensuring zero restricted substances in all processed materials.
Engineered Value & Manufacturing Performance in Numbers
Years Experience
Decades of specialized engineering mastery in complex geometric CNC manufacturing.
Active Clients
Serving global enterprise groups across Tier-1 aerospace and top-tier medical device design houses.
CNC Machines
Massive asset deployment ensuring zero internal production bottlenecks or unexpected queue delays.
Parts Delivered
Field-tested precision components executing high-reliability functions globally.
Pass Rate
Industry-leading Quality Assurance metrics driving down total cost of ownership for our long-term procurement partners.
Frequently Asked Questions
Q1: What is the maximum and minimum part diameter your Swiss CNC machines can handle?
A1: Our Swiss-type machines handle bar stock diameters from 1 mm up to 38 mm. The maximum part length is typically up to 200 mm per setup on sliding headstock machines, with longer parts achievable using pick-off and sub-spindle operations for second-end machining.
Q2: What tolerances can Swiss CNC machining achieve compared to conventional CNC turning?
A2: Swiss CNC machining achieves significantly tighter tolerances than conventional turning due to the guide bushing design. Our standard Swiss tolerance is ±0.005 mm on diameters, with precision capabilities down to ±0.002 mm. This is approximately 2-3 times tighter than conventional CNC lathe tolerances for small-diameter parts.
Q3: Is Swiss CNC machining suitable for materials other than metal?
A3: Yes. Swiss machines can process a wide range of engineering plastics including PEEK, POM (Delrin), PTFE, Acrylic, Ultem, PVC, and Nylon. These materials are commonly used for medical devices, electrical insulators, and chemical-resistant components requiring tight tolerances.
Q4: What is thread whirling and when would I need it?
A4: Thread whirling is a specialized Swiss machining process where a rotating cutter head with multiple inserts generates threads by interpolating around the workpiece. It is essential for producing bone screws (medical), lead screws (actuators), and high-precision threaded components where conventional single-point threading cannot achieve the required surface finish or thread profile accuracy.
Q5: Can Swiss CNC machines produce complete parts that require both front and back operations?
A5: Yes. Most of our Swiss machines are equipped with a synchronized counter-spindle (sub-spindle) that picks off the part for back-end machining. This allows milling, drilling, tapping, and slotting on both the front and rear faces in a single cycle, eliminating secondary operations and reducing per-part cost.
Q6: Do you provide material certifications and full inspection reports with Swiss machined parts?
A6: Yes. Every order includes a comprehensive QC documentation package with dimensional inspection reports, material mill test reports (MTR), surface finish measurements, and RoHS/REACH compliance declarations upon request.
Explore Our Complementary Precision Manufacturing Capabilities
4-Axis CNC Machining
Rotary indexing for efficient multi-side machining and complex component production with fewer setups.
5-Axis CNC Machining
Advanced simultaneous milling for complex geometries, precision surfaces and tight-tolerance components.
CNC Turning
High-precision lathe machining for shafts, pins, sleeves and other cylindrical components.
Die Casting
High-volume aluminum and zinc alloy casting solutions for consistent production-ready metal components.
Injection Molding
Custom plastic injection molding for prototypes and production-grade plastic components.
All CNC Services
Click to explore our complete range of CNC machining, turning and custom manufacturing services.
Ready to Start Your Next Precision Project?
Upload your engineering drawings and receive DFM feedback + itemized quote within 12 hours.
