Precision Sheet Metal Fabrication Services
Custom Metal Shaper & Heavy-Duty Enclosure Manufacturing Solutions
Profit Machining provides end-to-end precision sheet metal fabrication solutions, transforming raw metal sheets into high-tolerance structural components, custom enclosures, and complex weldments. Utilizing advanced fiber laser cutting, CNC bending, and robotic welding technologies, we meet your most demanding structural blueprints from rapid prototypes to high-volume production.
Quick Facts
| Engineering Metric | Specification Standard |
|---|---|
| Achievable Tolerance | ±0.01 mm (0.0004 inches) |
| Material Catalog | 30+ Certified Metals & Plastics |
| Minimum Order Quantity (MOQ) | 1 Piece (Prototyping Approved) |
| Standard Lead Time | 3 - 15 Business Days |
| Quality Control Standard | 100% In-Process & Final Inspection |
| Production Scaling Capacity | Prototype to Mass Production Runs |
What Is Sheet Metal Fabrication?
5-axis CNC machining is an advanced subtractive manufacturing process where the cutting tool moves across the X, Y, and Z linear axes while simultaneously rotating on the A and B axes. This multi-axis movement allows the cutting tool to approach the workpiece from any direction, enabling the fabrication of highly intricate geometries, deep undercuts, and organic contours in a single continuous setup. By eliminating multiple fixtures, 5-axis machining minimizes human error, dramatically improves positional accuracy, and yields superior surface finishes required for aerospace, medical, and high-tech applications.
Machining Capabilities
Fiber Laser Cutting
High-speed, high-density beam cutting for material thicknesses up to 20mm with clean, slag-free edge profiles.
CNC Bending & Forming
Multi-axis press brakes executing complex angles and radius bends with automatic springback compensation.
Precision Metal Stamping
High-tonnage stamping presses for custom progressive die stamping, louvers, counterbores, and ribbing features.
Structural Welding (TIG & MIG)
Certified manual and robotic welding setups for stainless steel, carbon steel, and aluminum weldments.
Hardware Insertion & Assembly
Automated installation of PEM nuts, studs, standoffs, and rivets with zero housing deformation.
Custom Enclosure Engineering
End-to-end turn-key manufacturing of complex 19-inch racks, server chassis, and NEMA-rated waterproof boxes.

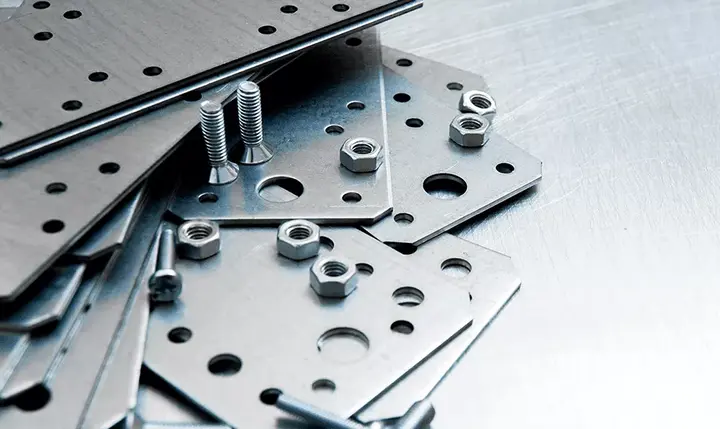

Materials We Machine
Surface Finishing Options

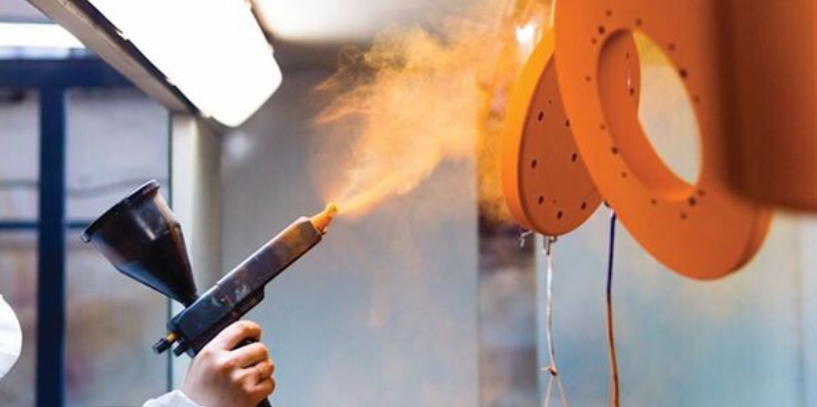

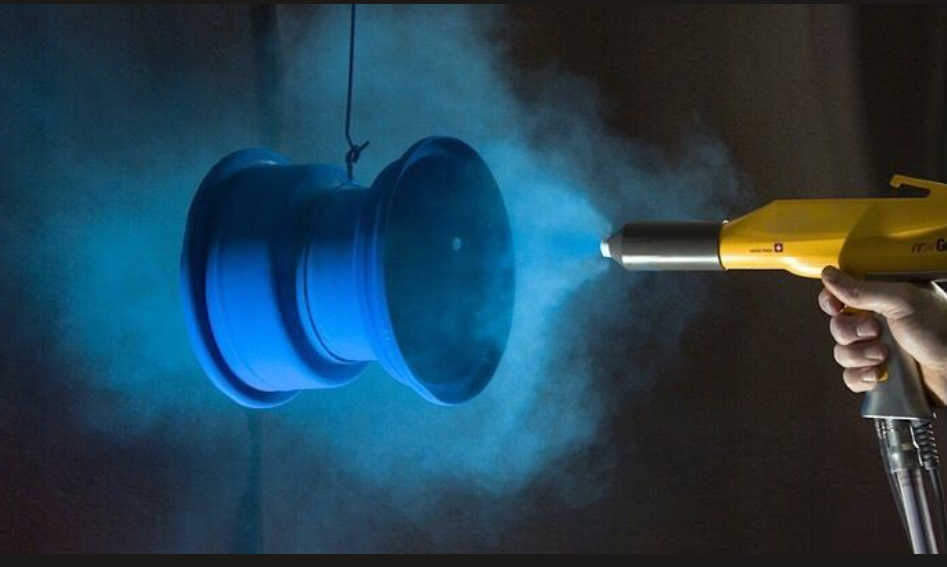

Powder Coating
Electrostatic deposition of dry powder cured under heat to form a scratch-resistant, heavy-duty protective coat.

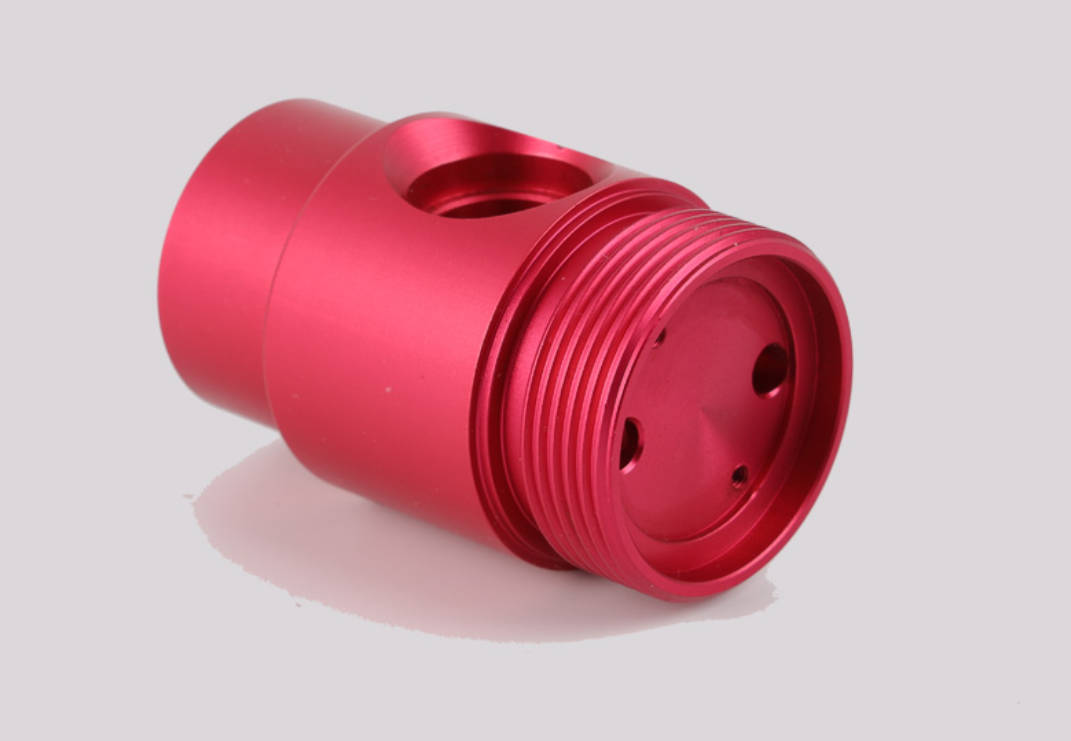

Anodizing (Type II & Type III)
Acid-bath electrolytic oxidation for aluminum panels to enrich corrosion properties and allow vibrant dye absorption.

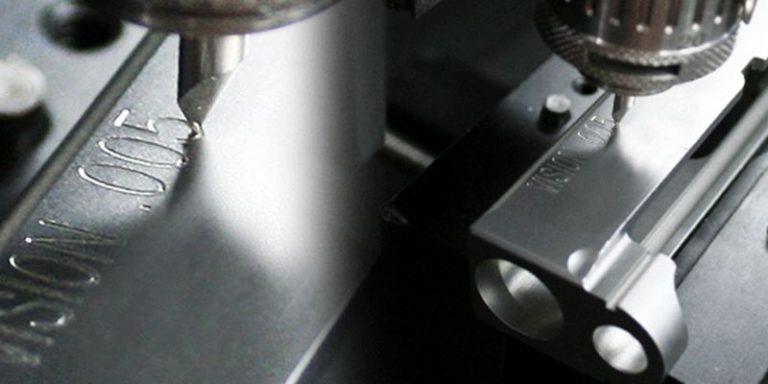

Silk Screening & Laser Engraving
High-definition chemical ink screening and high-precision laser marking for corporate logos, labels, and UI schematics.

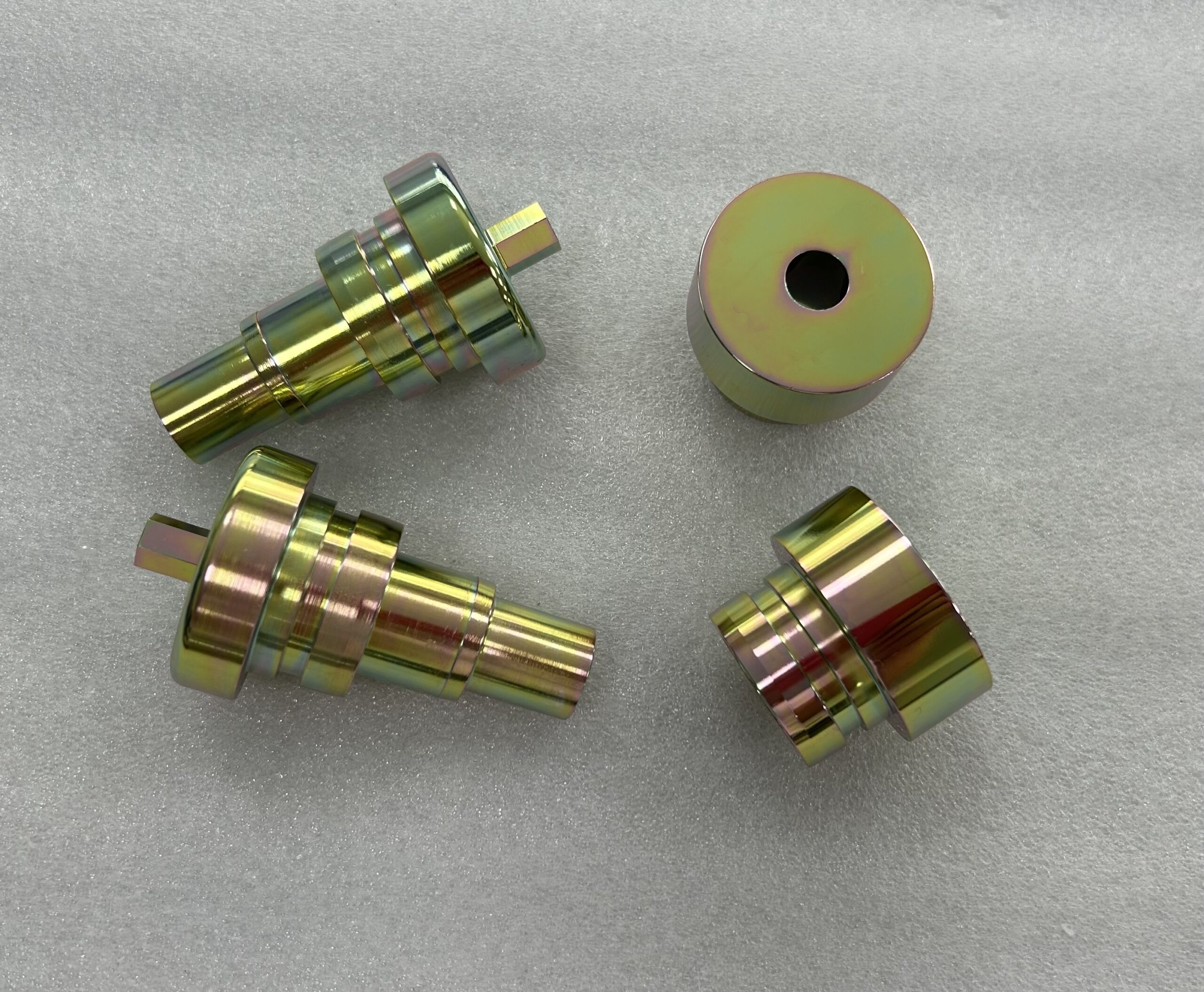

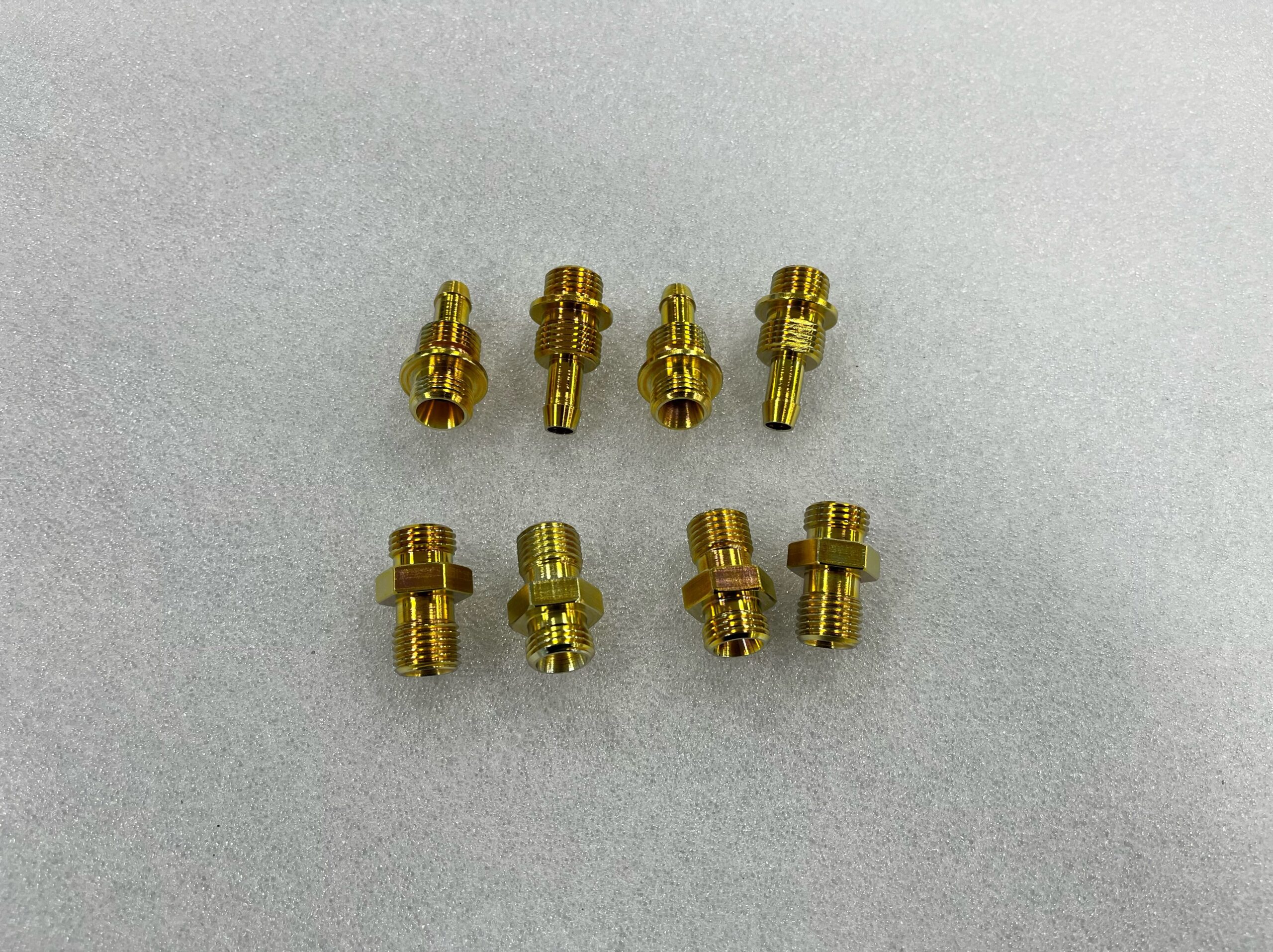

Zinc Plating / Electrogalvanizing
Electroplating a protective zinc layer over steel substrates to inhibit atmospheric rusting and moisture oxidization.

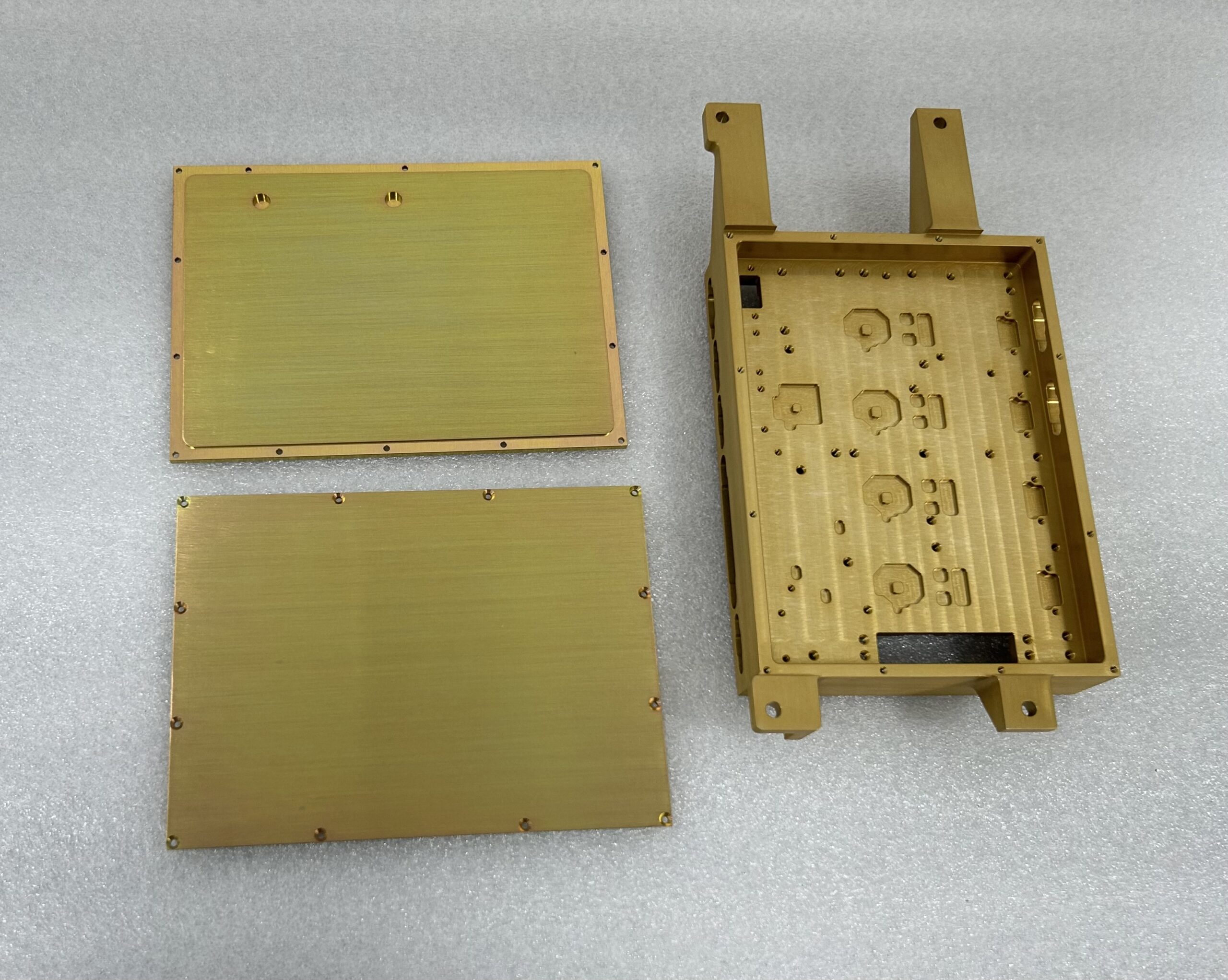

Chromate Conversion Coating (Alodine)
Chemical passivation pass for aluminum sheets to maintain electrical conductivity while reinforcing rust barriers.

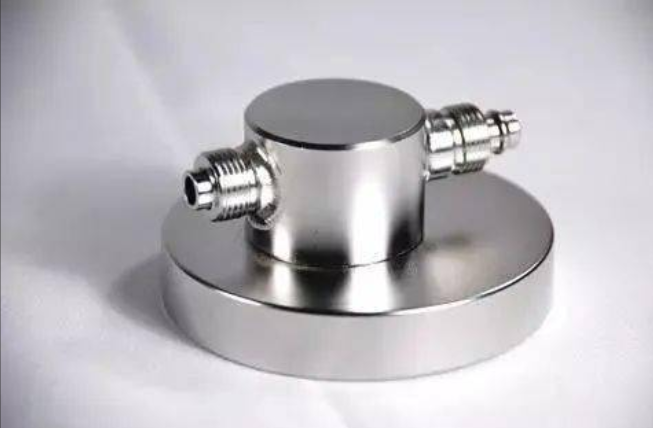

Brushing & Satin Finishing
Mechanical abrasive graining lines that yield a high-end fingerprint-resistant architectural look for front faceplates.

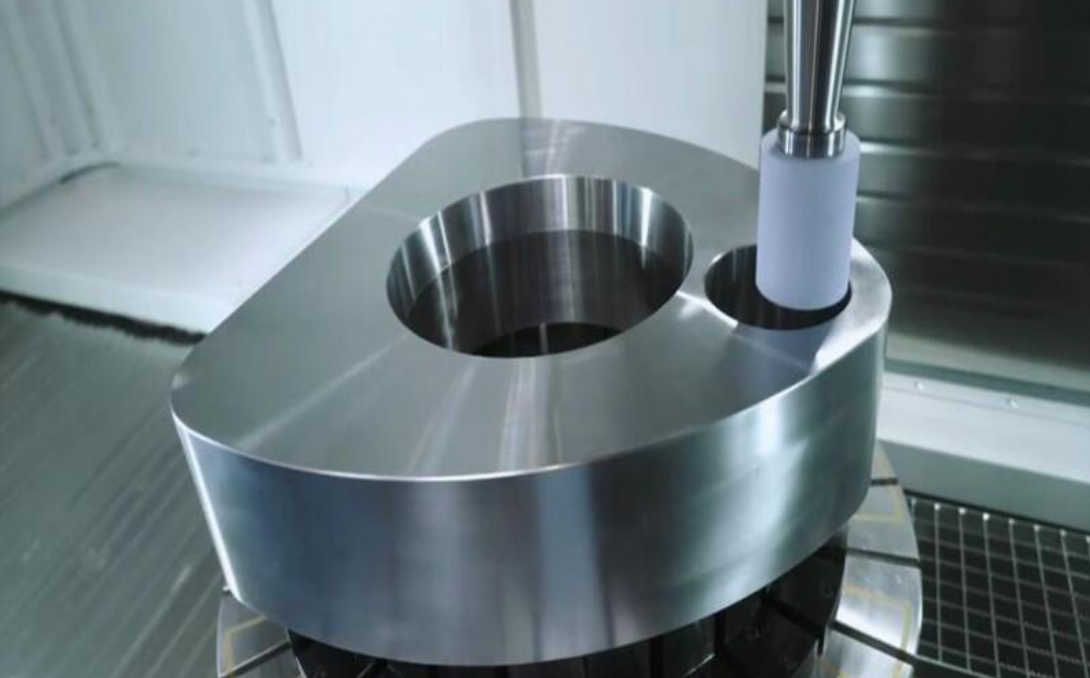

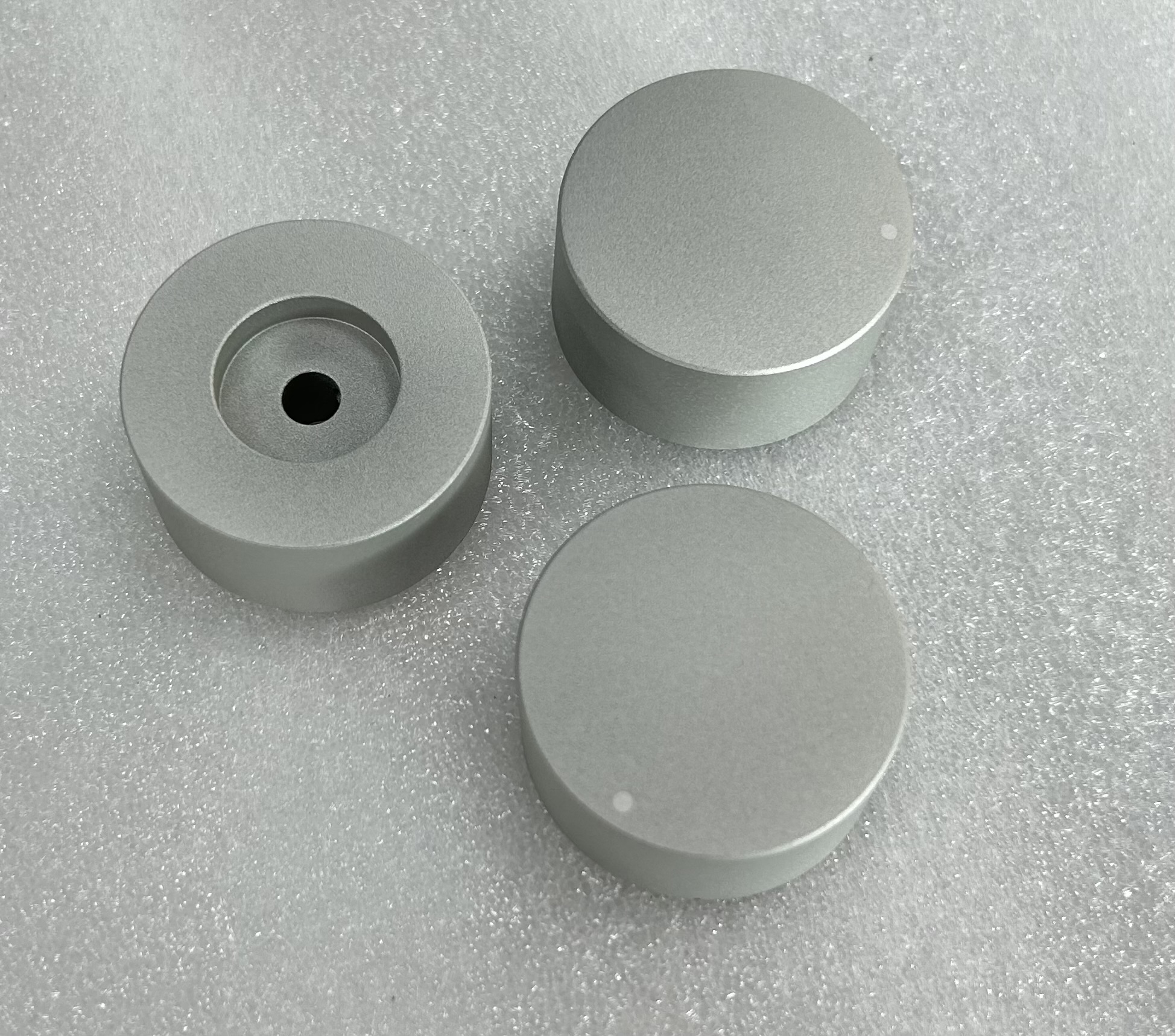

Sandblasting / Bead Blasting
Blasting micro-media onto sheet components to establish a uniformly textured, light-diffusing matte profile.
Passivation
Nitric or citric acid chemical wash for fabricated stainless steel weldments to eliminate free surface iron contaminants.
High-Precision CNC Tolerances & Verification Metrics
| Inspection Parameters | Achievable Production Capacity | Verified Measurement Methods |
|---|---|---|
| General Linear Tolerance | ISO 2768-m (Standard) | Digital Calipers & Micrometers |
| Precision Tolerances | Down to ±0.01 mm (±0.0004 in) | Coordinate Measuring Machine (CMM) |
| Surface Roughness (Ra) | Minimum Ra 0.8 μm (As Machined) | Contact Profile Surface Roughness Tester |
| Positional Repeatability | ±0.005 mm (High Precision Class) | Laser Interferometer Verification |
| CMM Dimensional Accuracy | ISO 10360-2 Certified Machine Accuracy | Hexagon Automated CMM |
| Thread & Gear Inspection | GO/NO-GO Gauge Validation | Optical Comparator & Gear Analyzer |
Industries We Serve
Automotive & Transit
Structural chassis reinforcement crossmembers, internal dashboard panels, EV battery modules, and heavy truck utility boxes.
Medical & Laboratory
Anti-contamination diagnostic test chassis, clinical device panels, centrifuge structures, and emergency metal housings.
Industrial Equipment
High-voltage transformer shells, commercial HVAC ventilation plenums, manufacturing terminal desks, and safety light curtains.
Robotics & Automation
End-of-arm custom tooling brackets, control terminal base-plates, safety fence barriers, and modular picking bin plates.

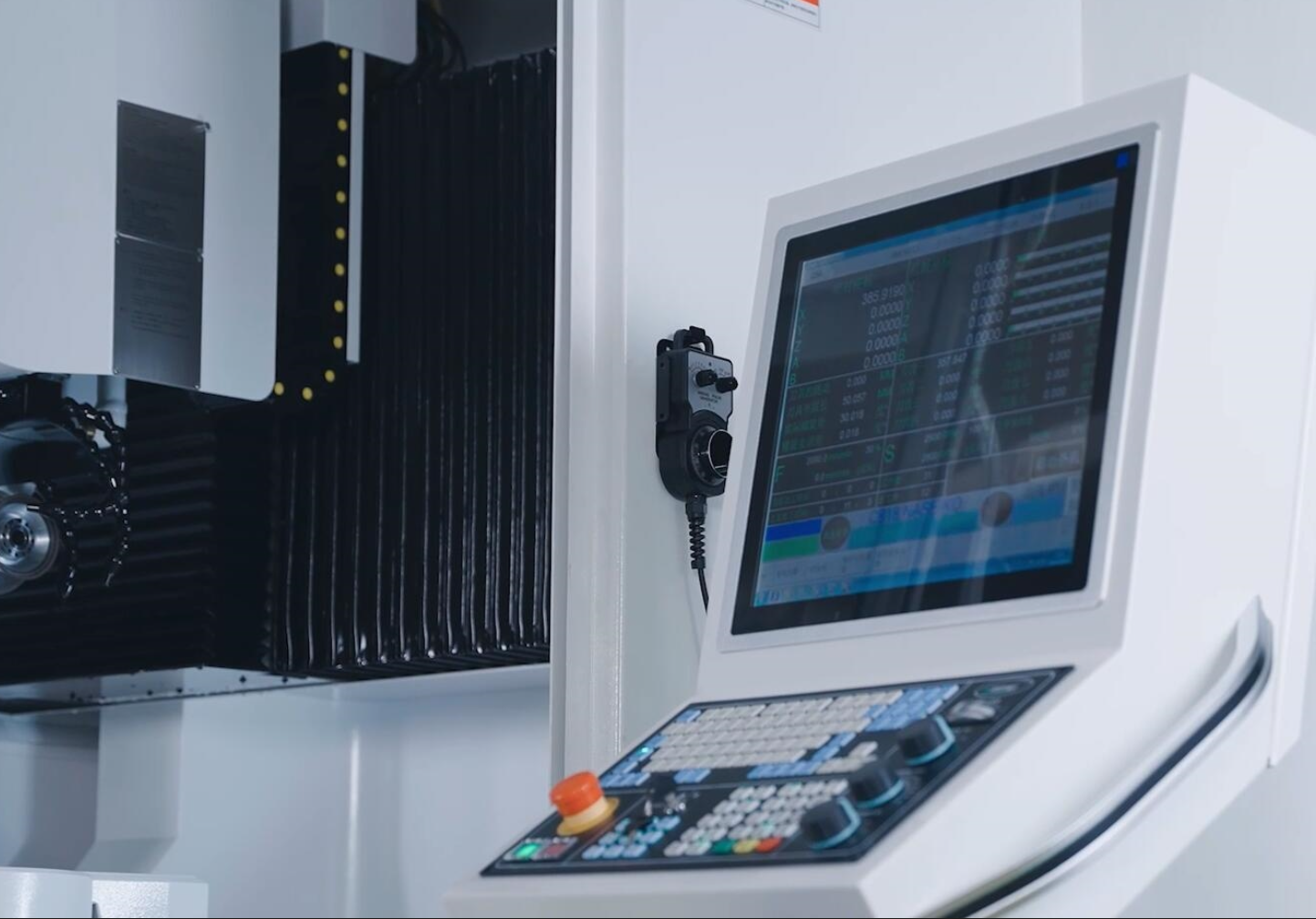

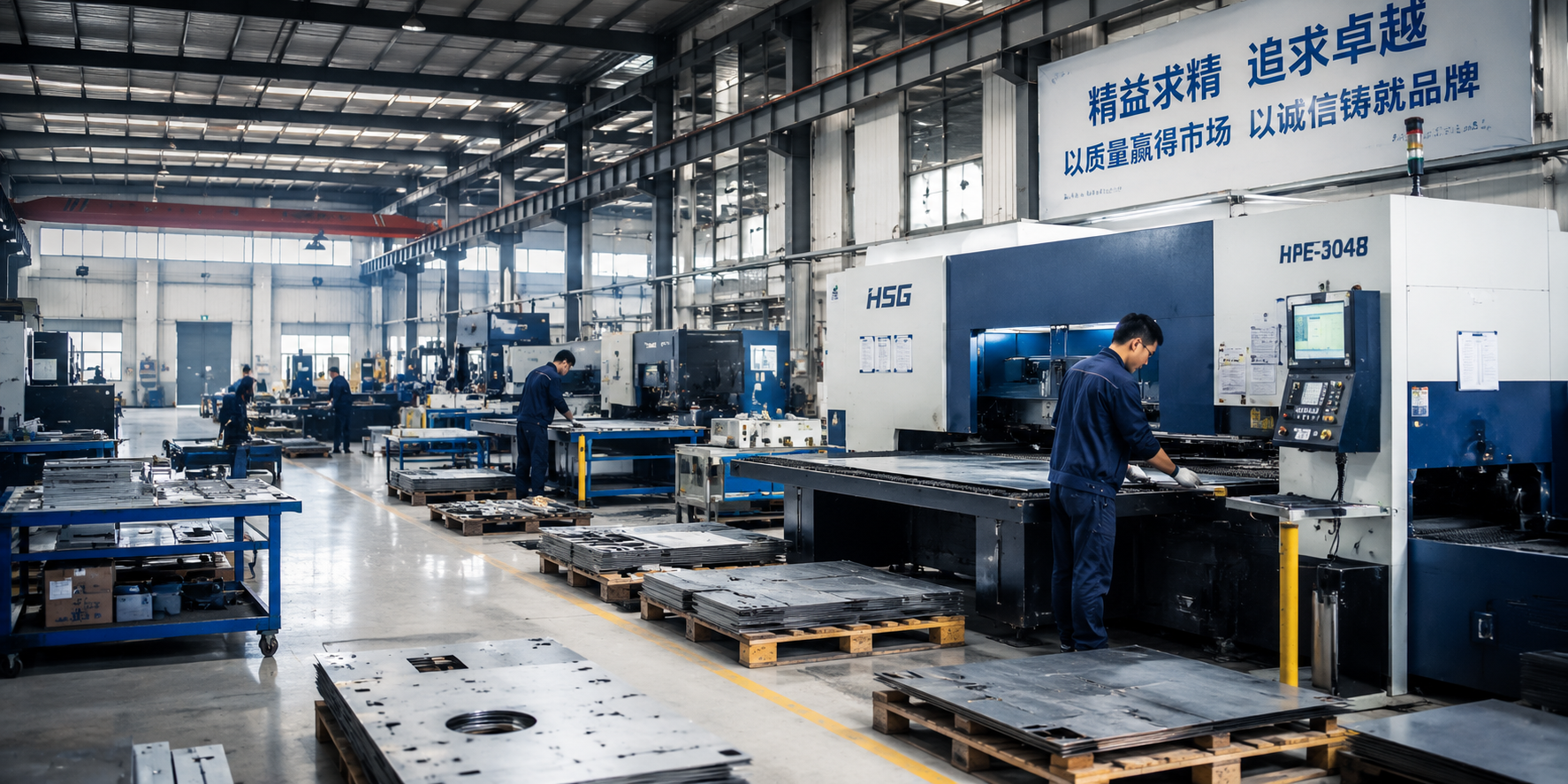

Advanced Machine Fleet & Production Capacity
| Equipment Classification | Machine Model / Axis Type | Capacity / Workspace | Quantity |
|---|---|---|---|
| 5-Axis CNC Machining Centers | DMG MORI Simultaneous 5-Axis | Up to 650 x 650 x 500 mm | 8 Units |
| 4-Axis CNC Milling Machines | Fanuc Controlled 4-Axis Vertical | Up to 1020 x 610 x 610 mm | 15 Units |
| 3-Axis CNC Production Mills | High-Velocity Vertical Machining Centers | Up to 1200 x 700 x 600 mm | 25 Units |
| High-Precision CNC Turning Centers | Live Tooling Lathes with Y-Axis | Max Swing: 420mm / Length: 600mm | 12 Units |
| Metrology Verification Station | Hexagon Automatic CMM | 800 x 1000 x 600 mm | 2 Stations |
| Secondary Processing Fleet | Surface Grinders & Micro-Drills | Specialized Finishing | 6 Units |

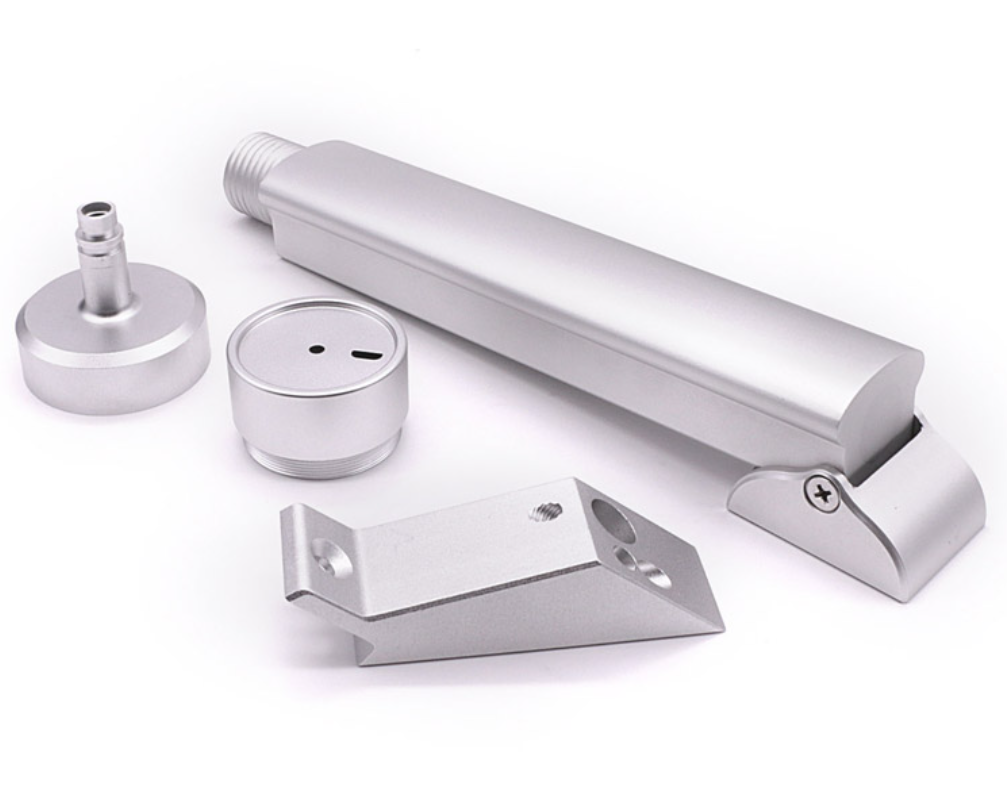

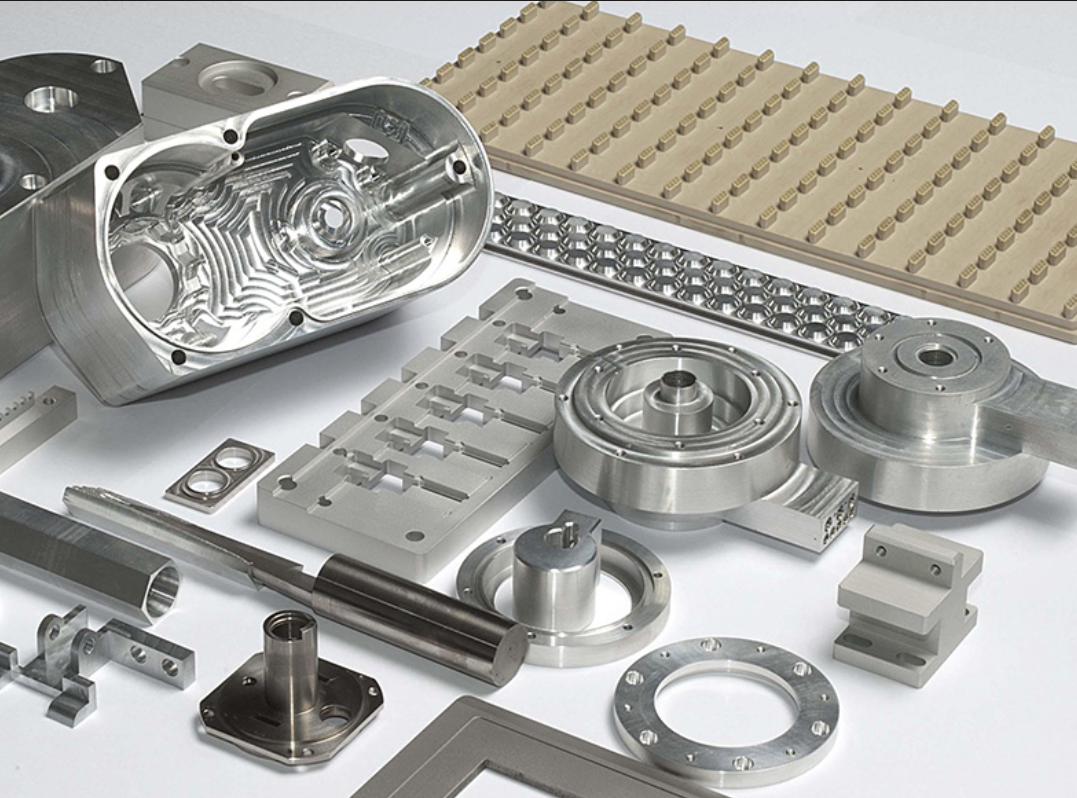

Portfolio Gallery of Machined Geometries
Aluminum Panels
Precision front bezels, card guides, and lightweight thermal heat sink dissipation guards.

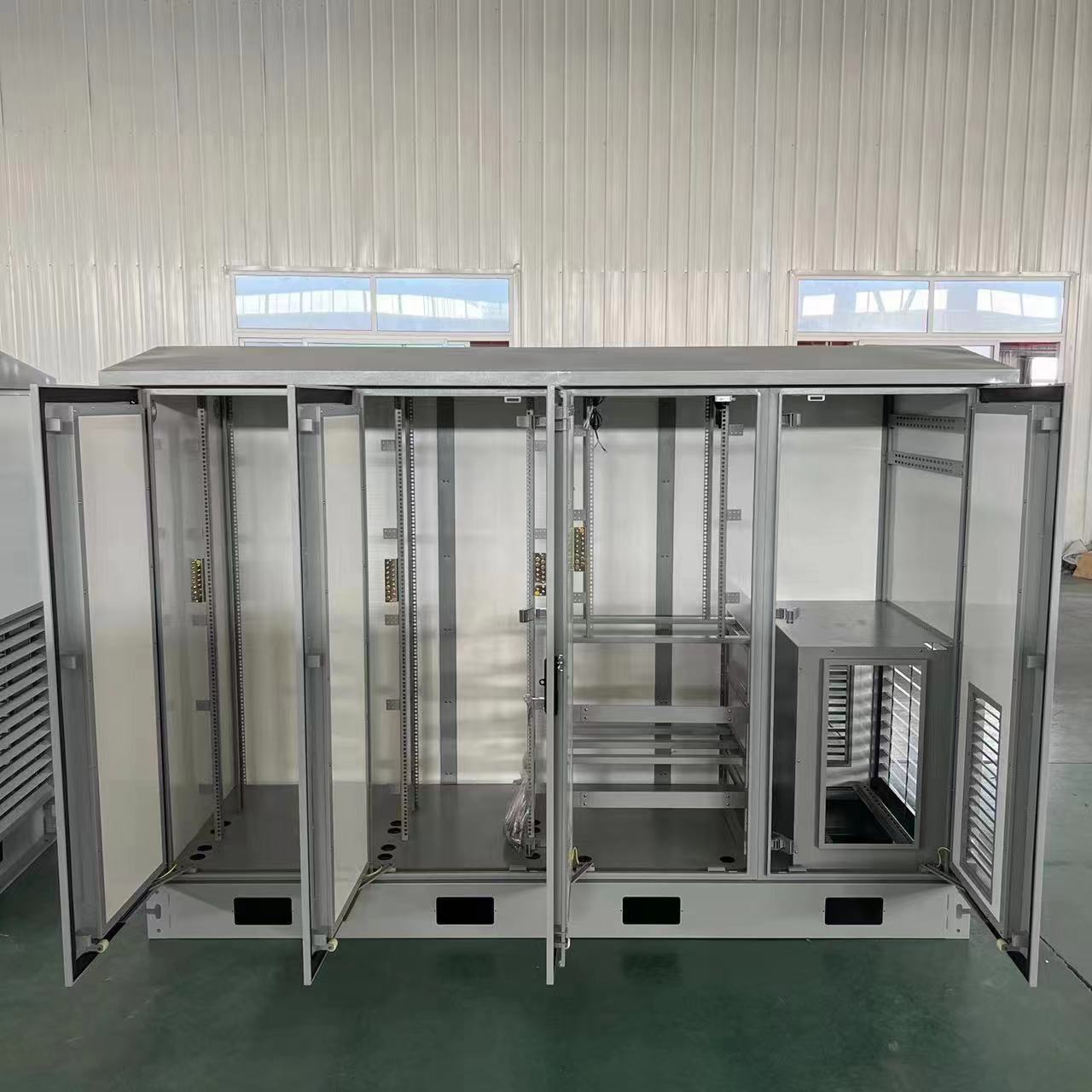

Steel Enclosures
Multi-compartment power boxes, modular tool cabinets, and server racks.
Medical Housings
Seamlessly welded medical cart shells, display arms, and sterilizable trays.
Robot Hardware
Robotic base structural plates, internal link plates, and protector shields.
Automotive Brackets
Custom EV battery hold-down plates, engine mounts, and dash reinforcements.
Industrial Frameworks
Heavy-duty machine guards, electrical control desks, and custom conveyors.
Our Streamlined 6-Step Process
01 Upload Blueprint Drawings
Securely upload your flat patterns or 3D models (STEP, DXF, DWG) via our commercial portal.
02 Engineering Design Review
Sheet metal technicians calculate bend deductions and evaluate structural design for manufacturability (DFM).
03 Quotation Pricing
Get an itemized, clear commercial invoice highlighting material prices, processing times, and surface treatment costs.
04 Prototype Proofing
Fabrication of initial sample parts to test bend tolerances and insert hardware alignment in physical application.
05 Volume Production
Mass setup scheduling across automated fiber lasers and automated press brakes for consistent structural outputs.
06 Rigorous QA Testing
Dimensional checking via calibrated metrics and thread go/no-go plug verification for every single piece.
Turnaround Commitments & Scalable Fleet Capacity
| Project Phase | Order Volume | Promised Lead Time |
|---|---|---|
| Rapid Prototyping | 1 - 5 Pieces | 3 - 5 Calendar Days |
| Small Batch | 10 - 100 Pieces | 7 - 10 Calendar Days |
| Mass Production | 500 - 5,000+ Pieces | 15 - 25 Calendar Days |
| Urgent Expedited | Custom | Available upon Request |
Certified Manufacturing Standards & Global Trade Compliance
ISO 9001
2015: Validated corporate Quality Management Standard covering all sheet metal forming, structural welding, and automated finishing facilities.
SGS Plant Audit Passed
Independently audited floor footprint, labor practices, fixed asset machine availability, and annual output capacity.
RoHS Directive Standard
Guaranteeing all base metals, zinc chemical solutions, and powder coat formulas are 100% free of hazardous compounds.
REACH SVHC Compliant
Certified safe raw material streams verified free of Substances of Very High Concern to satisfy European cross-border trade.
Engineered Value & Manufacturing Performance in Numbers
Years Experience
Decades of specialized engineering mastery in complex geometric CNC manufacturing.
Active Clients
Serving global enterprise groups across Tier-1 aerospace and top-tier medical device design houses.
CNC Machines
Massive asset deployment ensuring zero internal production bottlenecks or unexpected queue delays.
Parts Delivered
Field-tested precision components executing high-reliability functions globally.
Pass Rate
Industry-leading Quality Assurance metrics driving down total cost of ownership for our long-term procurement partners.
Frequently Asked Questions
Q1: What file extensions do you recommend for custom sheet metal fabrication quotes?
A1: For calculated flat pattern layouts and 2D laser trimming profiles, we highly recommend DXF (.dxf) or DWG (.dwg) file extensions. For complete bent three-dimensional structures and enclosure boxes, please upload STEP (.step) or STP (.stp) files, accompanied by a PDF blueprint defining critical hardware tolerances.
Q2: What is your standard minimum order volume restriction for customized enclosures?
A2: Profit Machining maintains an inclusive procurement policy; we have no minimum order volume (MOQ: 1 piece). We actively welcome engineering prototypes, trial marketing runs, and low-volume contract assemblies alongside million-part mass production setups.
Q3: Can Profit Machining provide full Design for Manufacturability (DFM) support for sheet metal?
A3: Yes, absolutely. For every single RFQ received, our dedicated engineering team executes a free, detailed DFM pass. We verify that the requested bend radii match our tooling matrices to avoid material tearing, check feature-to-edge safety distances for laser paths, and ensure your hardware placement is optimized for press brakes.
Q4: How do you prevent cosmetic scratches on stainless steel or aluminum panels during press brake operations?
A4: We utilize specialized laser-film protective coatings over raw metals from the outset. Furthermore, our CNC press brakes deploy urethane non-marking bending dies and protective cloth layers during the physical form process to eliminate any secondary metal-to-metal contact, preserving critical aesthetic front faces.
Q5: Can you supply complete coating thickness verification and material certificates?
A5: Yes. Every commercial parcel leaves our shipping bay with an itemized Final QA Inspection Sheet. Upon prompt specification in your original order setup, we include original raw steel Mill Test Reports (MTR), RoHS chemical compliance sheets, and non-destructive digital micrometer powder coat thickness results.
Q6: What welding credentials does your facility maintain for structural frame assemblies?
A6: Our precision welding team comprises certified manual TIG and MIG operators holding structural manufacturing qualifications. We also deploy automated multi-axis robotic welding cells that provide perfect weld penetration depth, uniform bead profiles, and exceptionally stable geometric repeatability on large enclosures.
Explore Our Complementary Precision Manufacturing Capabilities
3-Axis CNC Machining
Cost-Effective High-Speed Vertical Milling for Prismatic Sheet Hardware
4-Axis CNC Machining
Rotational Rotary Indexing for Heavy Industrial Component Efficiencies
5-Axis CNC Machining
Advanced Multi-Axis Simultaneous Milling for Aerospace Complexities
CNC Turning
High-Precision Lathe Tooling for Cylindrical Shafts & Axisymmetric Fasteners
Die Casting
Mass Alloy Press Casting for High-Volume Complex Industrial Applications
All CNC services
Click to view all CNC services
Ready to Start Your Next Precision Project?
Upload your engineering drawings and receive DFM feedback + itemized quote within 12 hours.
